Use Screen Sharing to Support iPhone, iPad, and iPod Touch

When supporting iPhone, iPad, and iPod touch devices, you can use iOS screen sharing, chat support, co-browsing, file transfer, and image sharing.

Screen sharing with iPhone, iPad, and iPod is available with iOS 11 and BeyondTrust iOS Customer Client 2.2.8.

Configure the iOS Device for Screen Sharing

Beginning with iOS version 11, iOS mobile devices can share or broadcast their screen to other applications, such as the BeyondTrust customer client app. However, before a user can start screen sharing from their iOS device, they must configure their device to use this functionality.

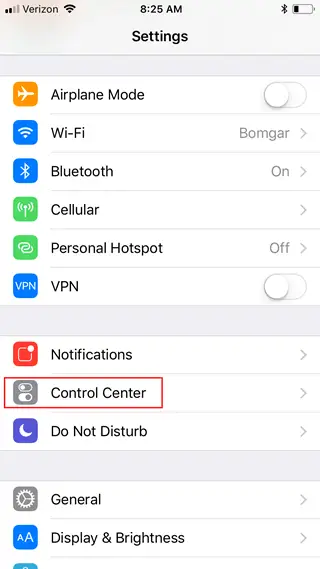

  1. From the iOS device, go to Settings > Control Center.

Ios General Settings Ers 17 1 2

2. Tap Customize Controls.

Ios Control Center Ers 17 1 2 Thumb 0 0

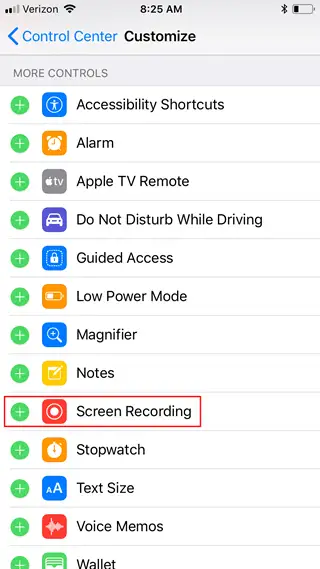

3. Scroll down to the More Controls section and tap + by the Screen Recording option. Screen Recording will then appear under the Include section. At this point, the iOS device can begin broadcasting its screen to other applications.

Ios More Controls Ers 17 1 2 Thumb 0 0

Start Screen Sharing with the BeyondTrust Remote Support Customer Client from an iOS Device

Once a user has screen sharing enabled on their iOS device, they can use this functionality to share their screen with a helpdesk representative. This allows the representative to view the user's screen in real time to better troublshoot issues being experienced with iOS applications or the mobile device itself. To start screen sharing with a representative from the BeyondTrust Remote Support customer client, follow the steps below.

  1. Open the BeyondTrust Remote Support Customer Clientapp on the iOS device.

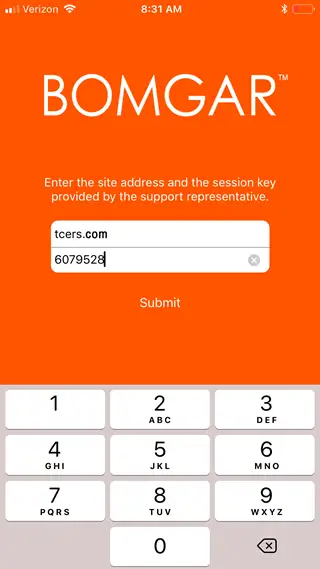

  2. Enter the site name and session key provided by the representative. Tap Submit.

  3. Once the representative accepts the session, the chat dialog appears.

Ios Customer Client Ers 17 1 2 Thumb 0 0

4. While in the customer client, starting at the bottom of the screen, swipe up to reveal more iOS options.

5. Firmly press the Screen Recording icon.

Ios More Options Ers 17 1 2 Thumb 0 0

6. From the Screen Recording prompt, tap BeyondTrust Support.

Ios Camera Roll Screen Recording Ers 17 1 2 Thumb 0 0

7. Then tap Start Broadcast. A countdown appears, indicating when broadcasting will begin.

Ios Bomgar Screen Recording Ers 17 1 2 Thumb 0 0

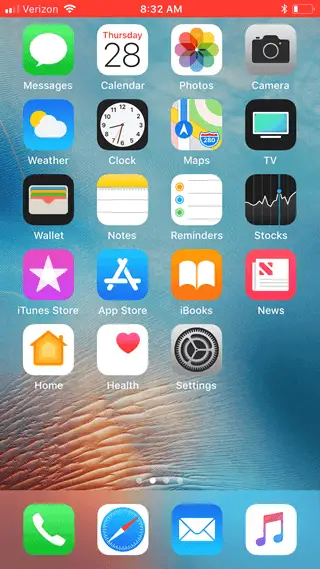

8. Once screen sharing is in progress, a thin red bar appears at the top of the screen. As long as the red bar is present, screen sharing is in progress.

Ios Screen Sharing Ers 17 1 2 Thumb 0 0

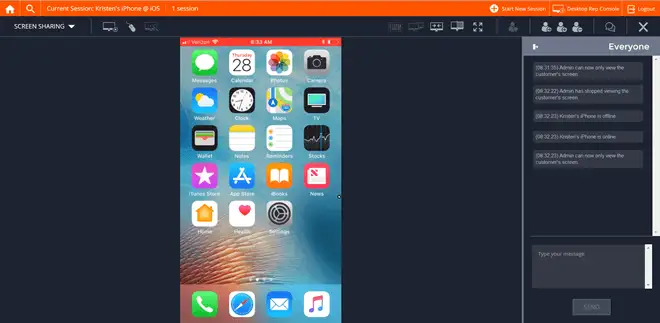

While screen sharing, the user can navigate in and out of applications, and the representative sees everything on the device's screen from the rep console.

Ios Customer Screen Recording Ers 17 1 2 Thumb 0 0

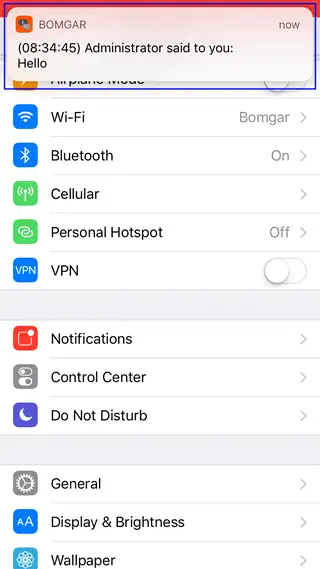

During the broadcast, the rep and user can continue to chat. The user receives chat popups from the rep at the top of the screen, and to respond, they simply tap the popup to begin typing their response.

Ios Broadcasting Chat Ers 17 1 2 Thumb 0 0

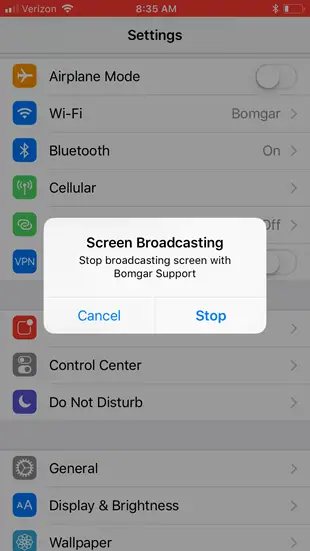

Whenever the user wishes to end their screen broadcast, they tap the red bar and tap Stop on the Screen Broadcasting prompt.

Ios Stop Broadcast Ers 17 1 2 Thumb 0 0

iOS 11 Screen Sharing Tips

  • Make sure to firmly press the Start Broadcast icon to begin a broadcast. If only tapped, the iOS device automatically chooses to share the screen recording with the device's camera roll and not the BeyondTrust app.

  • While screen sharing, make sure to keep the BeyondTrust Remote Support customer client running on the iOS device. If you close the client during the broadcast, the device could become disconnected from the session.

  • After screen sharing has been stopped, the user should immediately return to the customer client to continue receiving assistance.

Screen Sharing Prior to iOS 11

If your customer has both Mac OS X Yosemite and iOS 8, screen sharing can be done by tethering the device. To learn how to do this, check out our help article, Screen Share with the iOS Device.
